3 Point Flail Mower

3 Point Flail Mower

Specifications
  • Rear-mounted tractor attachment
  • Cat 1 compatible tractor accessory
  • Powered by PTO shaft
  • Compatible with machines 30 – 60 HP
  • Max gearbox rating of 65 HP
  • Replaceable forged hammer blades
  • Adjustable rear roller
  • Front safety chains
  • Sealed tapered roller rotor bearings
  • Kickstand for easy storage
1 Day
1 Week
1 Month

PRODUCT OVERVIEW

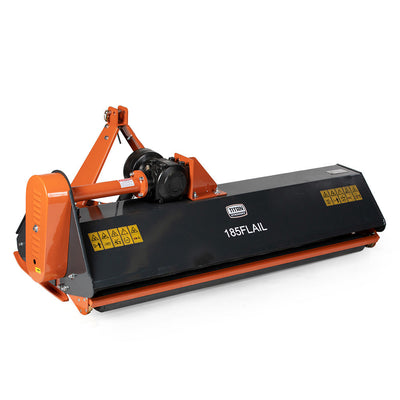

This Flail Mower is designed for mowing grass and removing dense undergrowth, with forged hammer flail blades that cut through material up to 3" thick in a single pass. Safety chains help direct debris downward to reduce the risk of debris becoming airborne. An adjustable rear roller lets you set the cutting height, while a hydraulic side shift provides up to 8" of left-or-right movement for easier access in hard-to-reach areas. Attaches to any Category 1 tractor with a 3 Point hitch.

  • Rear-mounted installation
  • Offset Cat 1, 3 point hitch
  • 540 RPM PTO shaft
  • 8" left-to-right hydraulic side shift
  • Mulches material up to 3" in diameter
  • Adjustable rear roller for setting cutting height

SPECIFICATIONS

3 Point Flail Mower

Specifications

Cutting Width
72-in.
Overall Width
78-in.
Roller Diameter
4-in.
Rotor Shaft Diameter
4.5-in.
Blade Swing
14-in.
Number of Belts
3
3PT Center To Center Bottom Pins
23.5-in.
3PT Top Link Pin To Bottom Pins
20-in.
Side Plate Thickness
0.25-in.

Power

Recommended for Tractors
40 HP – 60 HP
Minimum Power
30 HP
Gearbox Rating
65 HP

Material

Finish
Powder-Coated Charcoal/Orange
Material
Steel

Weight

Product Weight
649 lb.

SAFETY INFORMATION

It is very important that you are properly trained before using this equipment. You are required to wear all manufacturer-recommended safety gear, review all operating manuals and safety decals, and follow all safety precautions when using Titan attachments.

The operator/user assumes full responsibility for the proper use, care, and inspection of this equipment, as well as all required Personal Protective Equipment (PPE).

View Product Manual
