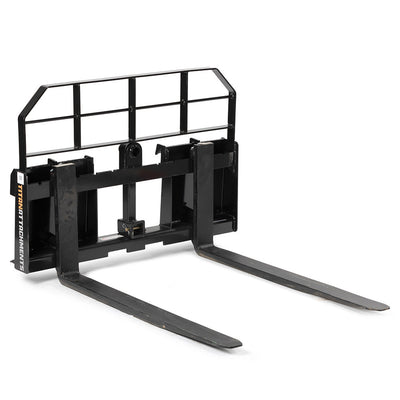

Pro Series Pallet Fork Frame, 48

Pro Series Pallet Fork Frame, 48" Fork Blades

Specifications
  • ‍Universal skid steer quick tach mounting system
  • ‍All-in-one frame for moving pallets, hay bales, and trailers
  • ‍See-through headache rack
  • ‍Integrated hay spear sleeves
  • ‍2" receiver hitch
  • ‍Class 2 pallet fork blades
1 Day
1 Week
1 Month

PRODUCT OVERVIEW

The Pro Series Pallet Fork Frame comes with a pair of 48" fork blades and attaches to your skid steer's SSQA system.

This Pro Series Pallet Fork Frame includes 48" Class II fork blades for moving pallets, logs, and other materials. The frame also features Conus 2 hay spear sleeves for added hay bale handling (hay spears not included).

  • Universal SSQA mounting system
  • Comes with 48” Class II pallet fork blades
  • 2" receiver hitch for light towing tasks

SPECIFICATIONS

Pro Series Pallet Fork Frame, 48

Specifications

Frame Height
33-in.
Frame Width
48-in.
Frame Depth
8-in.
Fork Length
48-in.
Fork Width
4-in.
Fork Thickness
1.25-in.
Receiver Hitch Dimensions
2-in. x 2-in.
Upper to Lower Rail
16-in.
Main Spear Sleeve
Conus 2

Material

Finish
Powder-Coated Charcoal
Material
Steel

Weight

Frame Weight Capacity
6,000 lb.
Fork Weight Capacity
4,000 lb.
Fork Pair Weight
196 lb.
Frame Weight
195 lb.

SAFETY INFORMATION

It is very important that you are properly trained before using this equipment. You are required to wear all manufacturer-recommended safety gear, review all operating manuals and safety decals, and follow all safety precautions when using Titan attachments.

The operator/user assumes full responsibility for the proper use, care, and inspection of this equipment, as well as all required Personal Protective Equipment (PPE).

View Product Manual
