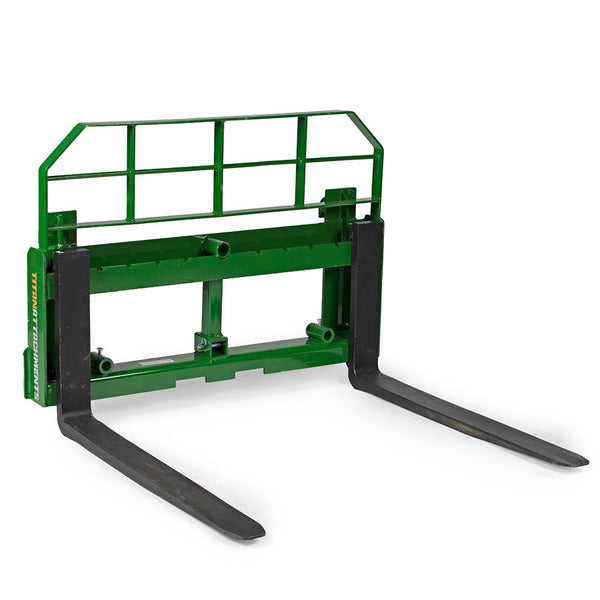

Pro Series Pallet Fork Frame Attachment, Fits John Deere

Pro Series Pallet Fork Frame Attachment, Fits John Deere

Specifications
  • ‍Hook and pin mounting style
  • ‍3-in-1 fork frame for moving pallets, hay bales, and trailers
  • ‍See-through headache rack
  • ‍2" receiver hitch included
  • ‍Class 2 pallet fork blades
1 Day
1 Week
1 Month

PRODUCT OVERVIEW

Heavy-duty 3-in-1 Hook and Pin frame comes equipped with a pair of 48" Class II fork blades.

This extreme duty 3-in-1 hook and pin pallet fork frame features a slotted carriage bar and 48” pallet fork blades for moving large pallets. This frame also features Conus 2 hay spear sleeves for hay bale handling (spears not included).

  • Hook and pin mounting system
  • 3-in-1 frame for pallets, hay bales, and towing
  • 6,000 LB lifting capacity
  • 48” pallet fork blades
  • 2" receiver hitch for light towing

SPECIFICATIONS

Pro Series Pallet Fork Frame Attachment, Fits John Deere

Specifications

Frame Height
33-in.
Frame Width
48-in.
Frame Depth
6.5-in.
Fork Length
48-in.
Fork Width
4-in.
Fork Thickness
1.25-in.
Pallet Fork Blades
Class 2
Upper to Lower Rail
16-in.
Main Spear Sleeve
Conus 2
Receiver Hitch Dimensions
2-in. x 2-in.

Material

Finish
Powder-Coated Green
Material
Steel

Weight

Frame Weight Capacity
6,000 lb.
Fork Weight Capacity
4,000 lb.
Fork Pair Weight
196 lb.
Frame Weight
200 lb.

SAFETY INFORMATION

It is very important that you are properly trained before using this equipment. You are required to wear all manufacturer-recommended safety gear, review all operating manuals and safety decals, and follow all safety precautions when using Titan attachments.

The operator/user assumes full responsibility for the proper use, care, and inspection of this equipment, as well as all required Personal Protective Equipment (PPE).

View Product Manual
